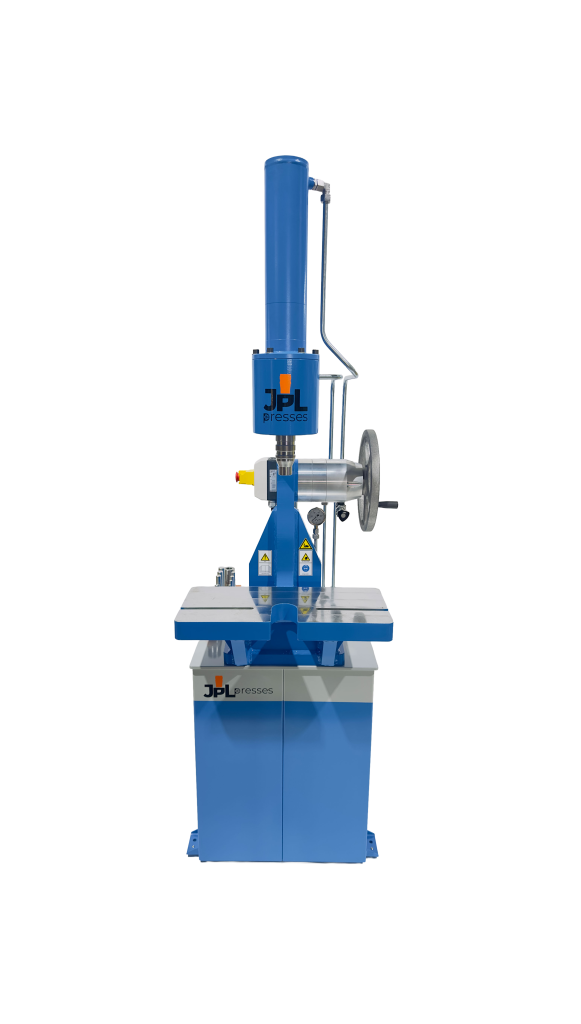

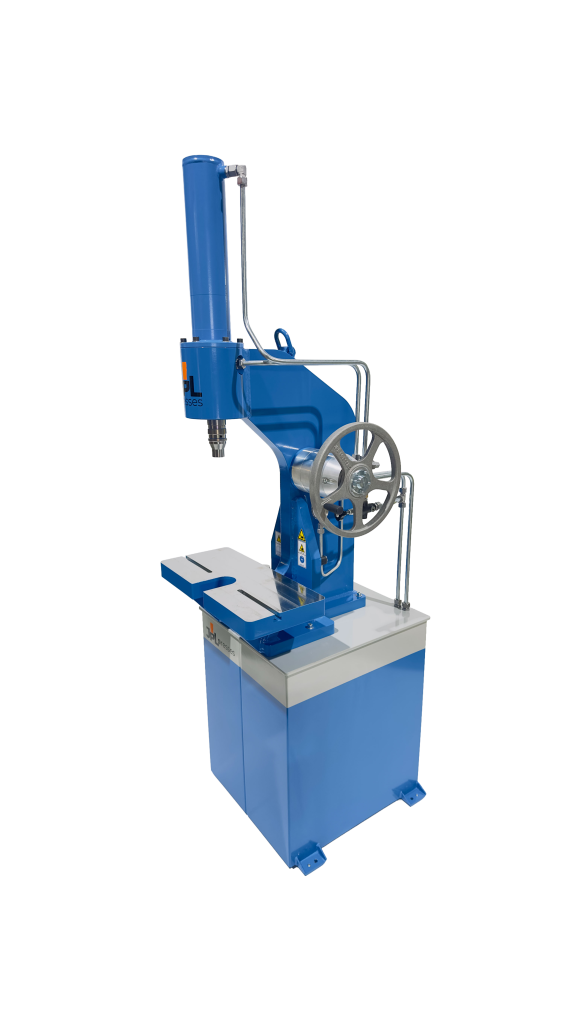

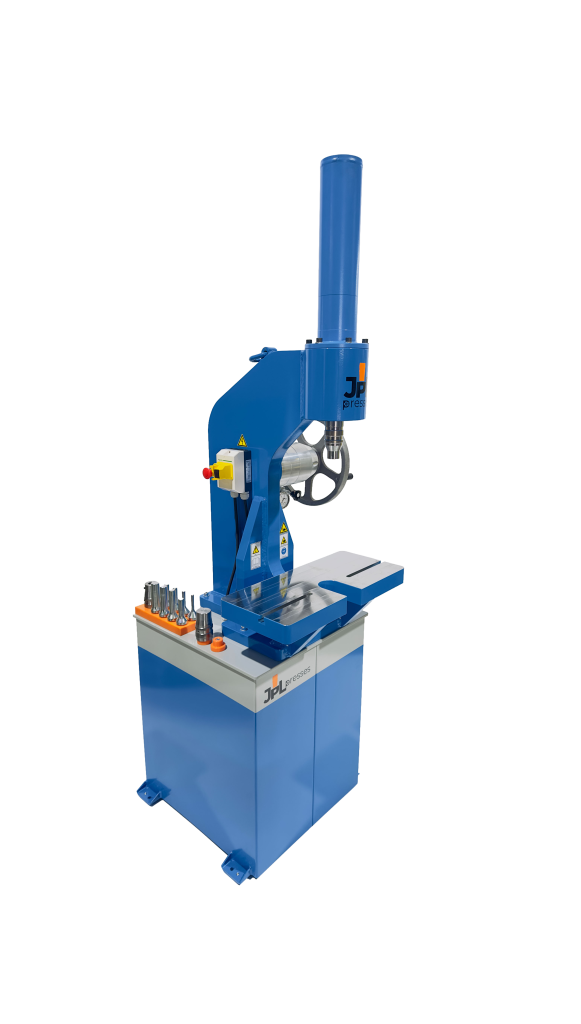

JPL C250-150kN H420 ST.

  • Max. pressing force 150kN (15 ton)
  • Maximum overhang 250mm
  • Maximum workpiece height 415mm
  • Maximum cylinder stroke 450mm
  • Working height 1000 mm
  • Regulation range 20-200 bar
  • Connection voltage 400 VAC 3 ph 50 Hz 2.2 kW
  • Afmetingen pers LxBxH) 800x730x2230mm
  • Color RAL 5015/7038
  • Gewicht 700 KG
Press table:
  • Press table dimensions 650x290 mm
  • U-shaped recess ø 80 mm
  • 2 x T-slot
Operation via:
  • Handwheel
  • Operating height handwheel center distance 1350mm
  • Maximum downward speed 28 mm/sec
Tools:
  • 1 x Adapter 40 mm
  • 1 x Adapter 50 mm
Request a quote

Additions

Accessories for the press.

Custom accessory

Read more

JPL presses

Our other presses.

JPL presses

Specialists in Custom Press Solutions

Do you have specific wishes or requirements? In addition to the standard versions, JPL Presses also offers so-called specials. These specials are developed on commission for and with the customer. Because the engineering, hydraulics, control technology, and manufacturing of the presses are managed in-house, a complete product can be realized with short lines of communication.
